2013 Nidek LE-700

The Nidek LE-700 is a complete edging station combining tracing, blocking, and grinding in a compact format. Featuring a high-resolution color touchscreen and advanced capabilities like patternless 3D tracing and real-time machining simulation, this device meets the diverse needs of opticians and laboratories. With an internal memory for up to 20,000 shapes and versatile accessory options, the LE-700 ensures precise results and ready-to-wear lens finishing. Discover the simplicity and efficiency of the LE-700, designed to optimize your optical operations.

Description

Nidek LE-700: Versatile Edging and Precision for Optimal Optical Services

The Nidek LE-700 revolutionizes lens edging with its compact design and exceptional performance. This all-in-one device combines tracing, manual blocking, and grinding functions in an ergonomic and intuitive solution. Thanks to its advanced technologies, the LE-700 simplifies the eyewear creation process while delivering impeccable quality, even for the most complex frames.

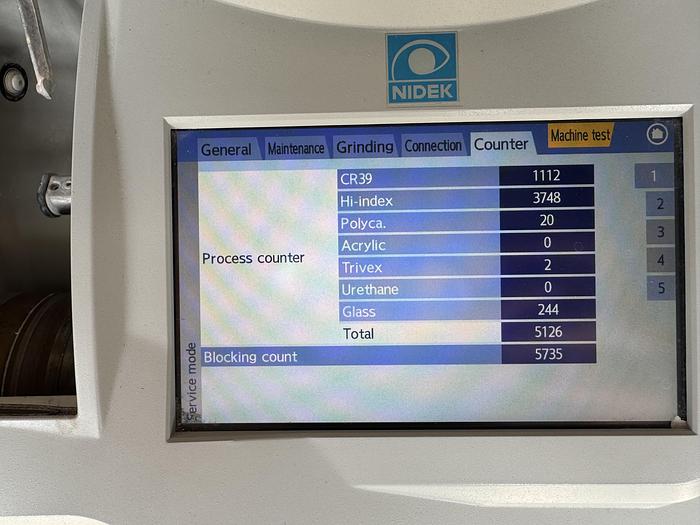

The LE-700 features an integrated intelligent manual blocker that ensures precise lens alignment at every stage. Its high-resolution color touchscreen, paired with an image magnification function, simplifies lens positioning and adjustments. Opticians can achieve accurate edging while minimizing post-production adjustments.

With its patternless 3D tracing technology, the LE-700 captures precise tracing data from demo lenses or templates. The new RMU (Radius Measuring Unit) and LMU (Lens Measuring Unit) further enhance precision by measuring the front curvature of lenses for flawless 3D machining. Its internal memory can store up to 20,000 shapes, providing quick access to frequently used models.

To meet diverse customer needs, the integrated shape editor offers unique flexibility. Lens dimensions, such as width, height, or overall size, can be precisely adjusted via an intuitive numeric keypad. This feature allows for adaptation to a wide variety of frames, including curved designs.

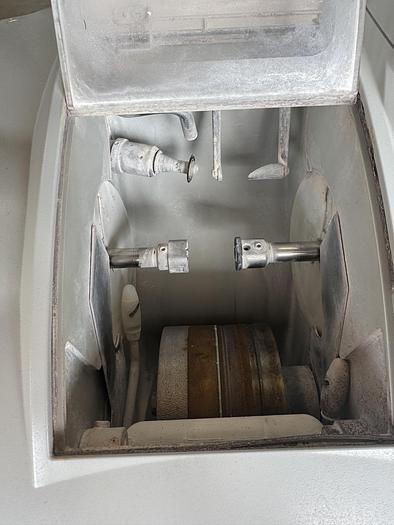

The LE-700 is designed to maximize workspace efficiency with its compact size (543 x 490 x 345 mm). Its vertical design protects components from debris and minimizes maintenance requirements. Integrated accessories, like double-tier storage trays, save time and improve convenience.

The patternless grinding system supports multiple functions, including:

• Automatic or guided beveling.
• Flat edging, polishing, and grooving.
• 3D simulation for precise machining performance control.
• Additionally, the system can process small lenses (down to 22 mm diameter with mini cups) and handle various materials.

Features

• Patternless 3D tracing technology for precise data capture.
• Integrated shape editor for personalized adjustments.
• Grinding system with grooving, beveling, and polishing options.
• Shape storage for efficient management of frequently used models.
• Minimal maintenance with debris protection and vertical design.

Technical Details

Available Modes:

• Patternless grinding, beveling (automatic, guided), flat grinding, polishing, grooving (automatic, guided), soft-touch processing, frame adjustment.

Adjustment Ranges:

• FPD (Front Pupillary Distance): 30.00 to 99.50 mm (increments of 0.01 mm).
• PD (Pupillary Distance): 30.00 to 99.50 mm (increments of 0.01 mm).
• 1/2 PD: 15.00 to 49.75 mm (increments of 0.01 mm).
• Optical Center Height: 0 to ±15.0 mm (increments of 0.1 mm).
• Size: 0 to ±9.95 mm (increments of 0.01 mm).
• Bevel Position: 0 to ±10.0 mm (increments of 0.1 mm).

Minimum Grinding Dimensions:

• Flat Grinding: ø22.0 x 19.0 mm / with optional mini chuck ø22.0 x 17.4 mm.
• Beveled Grinding: ø23.0 x 20.0 mm / with optional mini chuck ø23.0 x 18.4 mm.
• Safety Chamfer (Flat): ø27.6 x 24.6 mm / with optional mini chuck ø27.6 x 23.0 mm.
• Safety Chamfer (Beveled): ø30.2 x 27.2 mm / with optional mini chuck ø30.2 x 25.6 mm.
