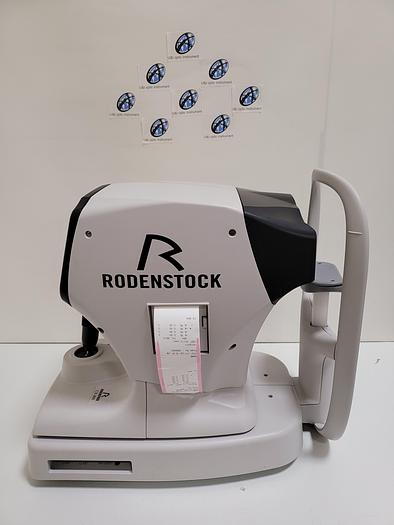

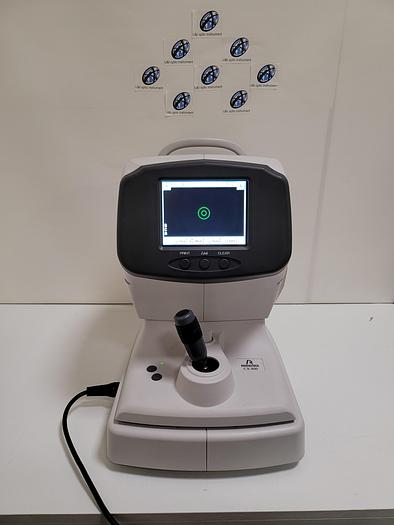

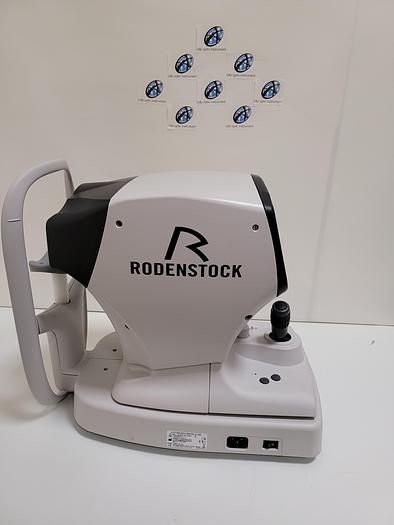

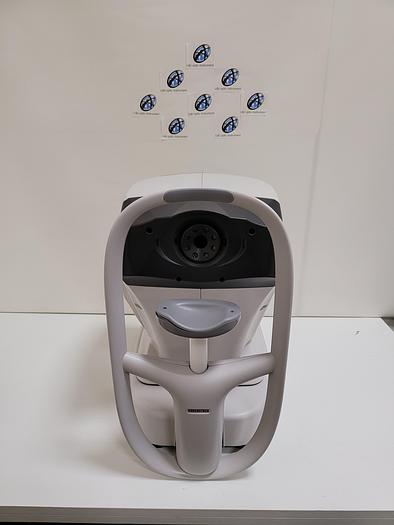

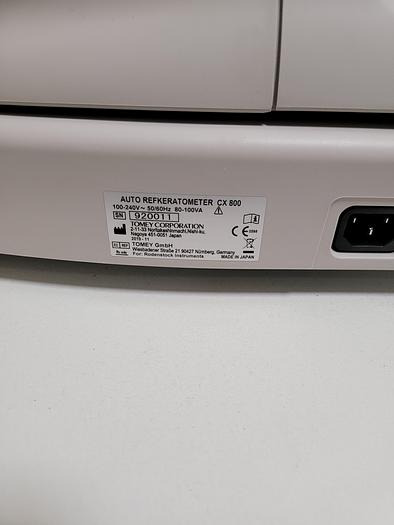

2019 Rodenstock CX-800

CX 800 Autorefractor Keratometer

Refractive power measurement

Spherical refractive power (S)

Measurement range:                     -25.00 D to +22.00 D

                       (at VD = 12.0 mm)

Display unit:                                     0.01 D / 0.12 D / 0.25 D

Cylindrical refractive power (C)

Measurement range:                     0 D to ±10.00 D

                       (at VD = 12.0 mm)

Display unit:                                     0.01 D / 0.12 D / 0.25 D

Astigmatism axial (A)

Measurement range:                     0° to 180°

Display unit:                                     1°

Corneal curvature measurement (K1, K2, AVG)

Measurement range:                   5.00 mm to 11.00 mm / 30.68 D

                     to 67.50 D (n=1.3375)

Display unit:                                   0.01 mm

Corneal astigmatism and axis (C, A)

Measurement range (C):              0 D to 10 D (n=1.3375)

Measurement range (A):             0° to 180°

Measurement area cornea:         Ø 3.0 mm

                     (at 8.00 mm corneal curvature)

PD range:                                         50 mm to 86 mm

Minimum pupil diameter:             Ø 2.0 mm

Vertex distance:                             0 mm - 16.0 mm

Main unit

Built-in printer:                                Thermal printer

Output:                                             RS 232 C

Display:                                            5.7“colour LCD display

Chin rest:                                          electr. controlled

Dimensions & Electric Requirements

Dimensions WDH:                           297 x 500 x 448 mm

Weight:                                             Approx. 17.0 kg

Voltage:                                            100 VAC to 240 VAC

Frequency:                                       50/60 Hz

Power consumption:                      80 VA to 100 VA
